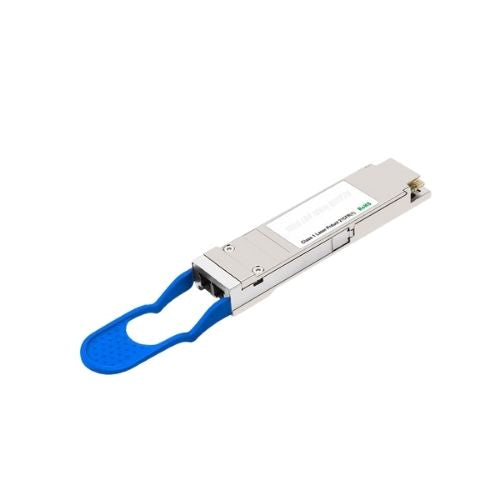

OPCSUN 100G QSFP28 Optical Transceiver LR4 Lite

Description

The 100G QSFP28 optical transceiver module is a high speed and low power consumption product that meets the requirements of 100G optical network applications. It has four high-speed differential signaling channels, and the transmission speed of each channel can reach 25Gbps, mainly used for high-speed interconnection of core switches and core routers in data centers.

Feature

• 4-channel full-duplex transceiver module
• Transmission data rate up to 25 Gbps per channel
• 4x25Gb/s DFB-based LAN-WDM cooled transmitter
• 4-channel pinrosa
• 3.3V single power supply
• Internal CDR circuitry for both receiver and transmitter
• Low power consumption <3.5W
• Hot-pluggable QSFP form factor
• Can reach up to 10km for G.652 SMF
• Duplex LC receptacle
• Built-in digital diagnostics
• Operating case temperature: 0-70°C
• RoHS compliant and lead-free
