10G SFP+ (10 Gigabit Small Form Factor Pluggable) Optical Transceiver Module is a kind of hot-pluggable optical transceiver with independent communication protocol, the main transmission wavelength is 850nm, 1310nm or 1550nm. SFP+ optical transceivers are used in 10Gbps SONET/SDH, Fiber Channel, Gigabit Ethernet, 10 Gigabit Ethernet, DWDM links, and other fiber communication applications.
Feature
Compliant with IEEE 802.3ae
SFP+ MSA SFF-8431 compliant
Digital diagnostics SFF-8472 compliant
Supports data rates from 9.95Gb/s to 10.3Gb/s

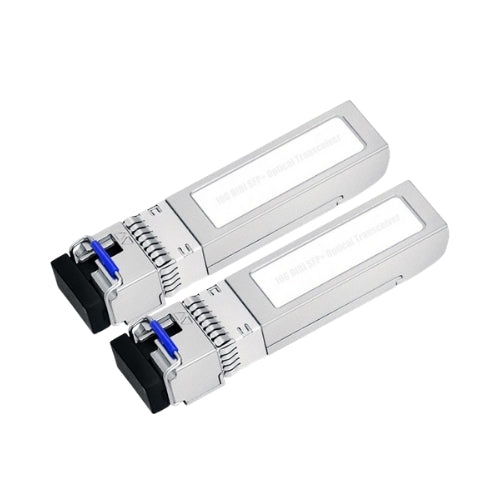

Simplex LC connector bi-directional SFP+
3.3V single power supply
Up to 10km with 9/125um SMF
A: 1270nm DFB laser transmitter and 1330nm receiver
B: 1330nm DFB laser transmitter and 1270nm receiver
