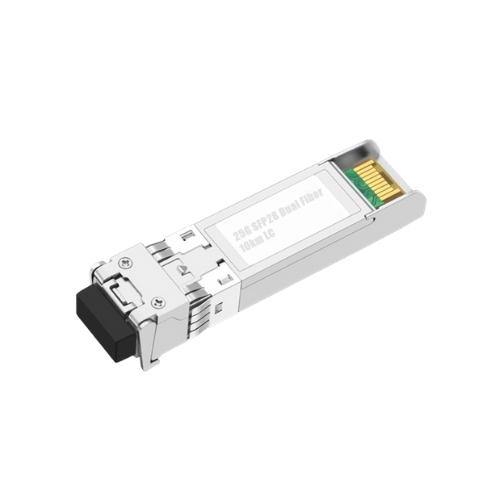

OPCSUN 25G SFP28 Optical Transceiver Dual Fiber SM

Description

25G SFP28 Optical Transceiver Module has Low Power Consumption, High-density, and can save Network deployment cost, it is mainly used for the Interconnection of Servers and Switches in Datacenter, it can maximize the Bandwidth and Density, and realize 100GB Data Transmission through 25Gbps Single-Channel. The SFP28 Optical Transceiver Module is widely used in 25G Ethernet and 100G (4x25Gbps) Ethernet, it can provide the most Energy-saving way to Meet the Growing Demand of the Next-Generation Datacenter Network.

Feature

• Supports 25Gbps data rate
• Maximum link length 10km
• 1310nm DFB laser
• PIN photodetector
• Internal CDR for both transmitter and receiver channels
• Hot-pluggable SFP28 form factor
• Duplex LC receptacle
• 3.3V single power supply
• Power consumption < 1.5W
• Digital diagnostic function
• I2C interface
• Operating case temperature: 0-70°C
• RoHS compliant and lead-free
