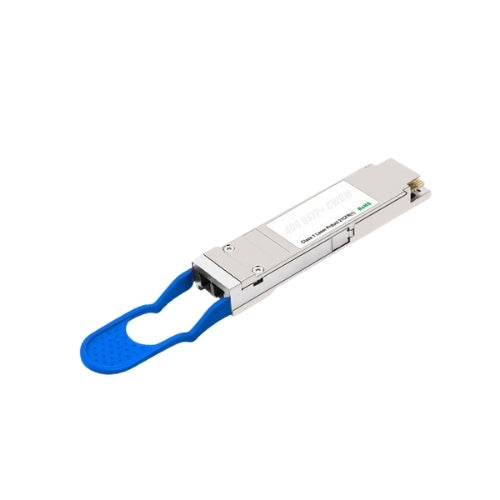

OPCSUN 40G QSFP+ Optical Transceiver CWDM

Description

40G QSFP+ (Quad Small Form-factor Pluggable) Optical Transceiver Module has 4 channels with SFP interface to meet the market demand for high speed optical network with 40Gbps transmission rate. As a fiber optic cabling solution, QSFP optical transceiver modules can support 10Gbps data transmission on each channel with the same port volume, so the density of QSFP reaches four times that of SFP+ optical transceiver modules.

Feature

• Compliant with IEEE 802.3ba specification
• 4 CWDM lane MUX/DEMUX design
• Data rates up to 11.2Gbps per wavelength
• QSFP+ MSA Compliant
• Up to 10km transmission
• Maximum operating power 3.5W
• Operating case temperature: 0-70°C
• RoHS compliant and lead-free
