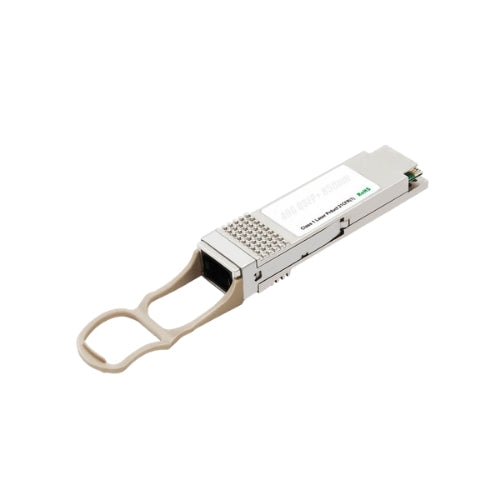

OPCSUN 40G QSFP+ Optical Transceiver Dual Fiber MM

OPCSUN 40G QSFP+ Optical Transceiver Dual Fiber MM

053-128503-003

Transmission distance

Request a Quote

Corporate Bulk Purchase Discount Available [Save Up to 40%]

Document Request

Technical information and quotation request: info@opcsun.com.cn

Description

40G QSFP+ (Quad Small Form-factor Pluggable) Optical Transceiver Module has 4 channels with SFP interface to meet the market demand for high speed optical network with 40Gbps transmission rate. As a fiber optic cabling solution, QSFP optical transceiver modules can support 10Gbps data transmission in each channel with the same port volume, thus QSFP's density reaches four times that of SFP+ optical transceiver modules.

Feature

  • 4-channel full-duplex transceiver module
  • Supports 44.58Gb/s aggregate bitrate
  • 4-channel 850nm VCSEL array
  • 4-channel PIN photodetector array
  • Hot-pluggable QSFP+ form factor
  • 3.3V single power supply
  • 1.5W maximum power consumption
  • Maximum link length 300m/OM3 or 400m/OM4
  • Single MTP/MPO receptacle
  • Built-in digital diagnostics
  • Operating case temperature: 0-70°C
  • RoHS compliant and lead-free
