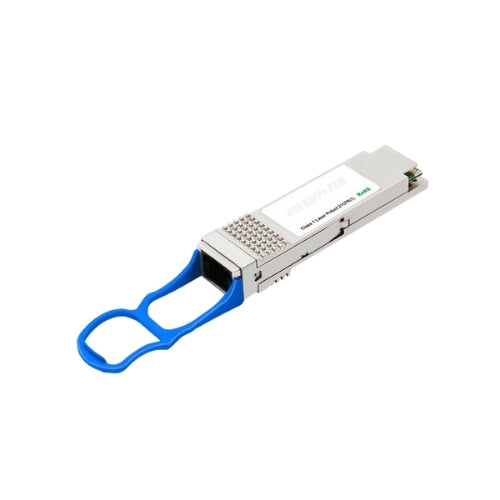

OPCSUN 40G QSFP+ Optical Transceiver PMS LR4

Description

40G QSFP+ (Quad Small Form-factor Pluggable) Optical Transceiver Module has 4 channels with SFP interface to meet the market demand for high speed optical network with 40Gbps transmission rate. As a fiber optic cabling solution, QSFP optical transceiver modules can support 10Gbps data transmission on each channel with the same port volume, thus QSFP's density reaches four times that of SFP+ optical transceiver modules.

Feature

• Full-duplex 4-channel 1310nm parallel module
• SFF-8436 QSFP+ compliant
• Hot-pluggable electrical interface
• Differential AC coupled high speed data interface
• 4-channel 1310nm DFB laser
• 4-channel PIN photodetector array
• G652 maximum link length is 10km
• Single Male MPO (APC 8 Degree) Connector Receptacle
• Maximum power consumption 2.5W
• Housing isolated from connector ground
• 3.3V supply voltage
• Operating case temperature: 0-70°C
• RoHS compliant and lead-free
